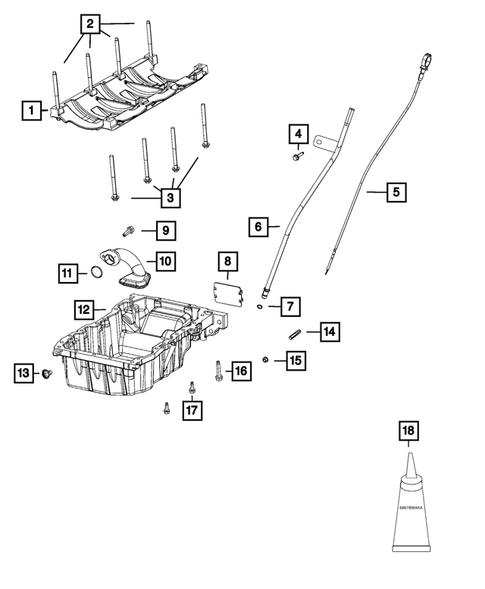

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2017 Chrysler 200
No.
Part # / Description / Price
Price
1
MSRP $79.90
$54.86
2
Hex Flange Head Bolt, Mounting, Inboard
Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Inner Main Bearing Cap To Cylinder Block. Inboard Main Bearing Cap To Cylinder Block. M11x1.50x94.00.
$8.58
$8.58
3
Hex Flange Head Bolt, Mounting, Outboard Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M8x1.25x97.00. Main Bearing Cap To Cylinder block.
$7.98
$7.98
7
$7.81
8
Cover, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Torque Converter Bolt Access. Flywheel Bolt Access. Torque Converter Bolt Acess. Torque Conveter Bolt Access. Bedplate Acess. Coolant Port. Ladder Frame Access.
$6.02
$6.02
9
MSRP $8.80
$6.56
10
Oil Pickup Tube Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: OIL PICKUP
MSRP $38.05
$27.35
MSRP $38.05
$27.35
11
Oil Pick Up Tube O Ring Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: 28.24mm ID.
MSRP $11.25
$8.44
MSRP $11.25
$8.44
12
MSRP $326.00
$212.30
13
Oil Drain Plug Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
MSRP $15.85
$11.88
MSRP $15.85
$11.88
15
Hex Flange Nut, Mounting, Front Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine. 2.4L I4 MultiAir Engine w/ ESS. 2.4L I4 PZEV M-AIR ENGINE. 2.4L I4 PZEV M-AIR ENGINE W/ ESS. 3.6L V6 24V VVT Engine.
Description: Channel Lower. M6x1.00. Lines to Hvac. After 01-09-2002. Included in Sliding Door Glass. Glass to Regulator attaching. Glass Assy. to Window Regulator. Glass atttach to regulator.
$8.12
$8.12
16
Hex Head Bolt And Coned Washer, Mounting, Upper Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Upper Oil Pan To Cylinder Block. M8x1.25x45.00. Engine Oil Pan To Cylinder Block. Upper Oil Pan To Cylinder Plug.
$5.60
$5.60
17
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M6x1.00x20.00. Oil Pan to Rear Oil Seal Retainer.
$3.36
$3.36
No.
Part # / Description / Price
Price
1

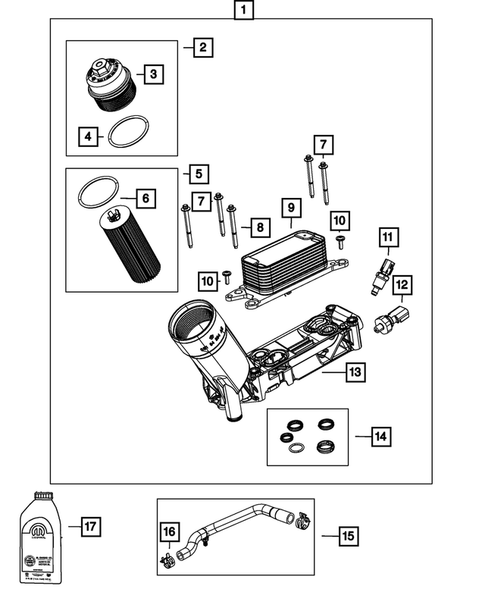

Engine Oil Filter Adapter Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Important 2014 new part number. This oil filter housing does NOT include the sensors.
MSRP $259.00
$170.50
MSRP $259.00
$170.50
2
MSRP $31.50
$22.81
5
Engine Oil Filter Kit Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Important 2014 new part number.
MSRP $10.35
$7.75
MSRP $10.35
$7.75
11
Fluid Temperature Sensor Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine. 2.4L I4 MultiAir Engine w/ ESS. 2.4L I4 PZEV M-AIR ENGINE. 2.4L I4 PZEV M-AIR ENGINE W/ ESS. 3.6L V6 24V VVT Engine.
Description: Engine Oil. Engine Coolant Temerature. Coolant Temp. In water pump.
MSRP $67.90
$46.63
MSRP $67.90
$46.63
12
Temperature/Pressure Sensor Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Switch. Refer To Illustration 105 For Location Of Engine Edentification Plant Code.. With Engine Plant Code TPHP6. Sending Unit To Engine Block. IMPORTANT Different Engine Plants Used Different Oil Filter Adapter Assemblies With Different Temperature/Pressure Sensors At The Time Of Production.Refer To Engine Identification Illustration 105 For Location Of Engine Identification Plant Code.
MSRP $105.00
$68.43
MSRP $105.00
$68.43
14
O Ring Kit Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Engine Oil Filter Adapter.
MSRP $14.20
$10.63
MSRP $14.20
$10.63
15
Oil Cooler Outlet Hose Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: OIL COOLER OUTLET
MSRP $52.60
$36.28
MSRP $52.60
$36.28
17
5w20 Engine Oil 2 Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Quart. Ms-6395. MS-10797 [API SM ILSAC GF-4]. [132 Fluid Ounces] Minimum Ship Quanity Of 12.
Not For Sale
Not For Sale
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
Price
1

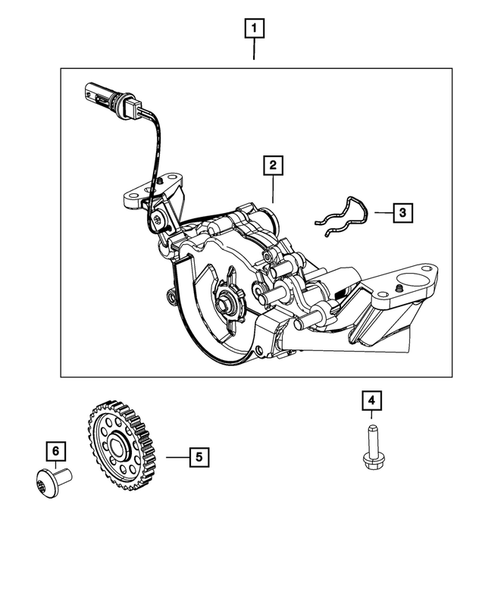

Engine Oil Pump Kit Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: After 03/07/2016.
MSRP $321.00
$209.00
MSRP $321.00
$209.00
3
Clip Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Locking Oil Pump Connector To Cylinder Block. Oil Pump Pressure.
$6.02
$6.02
4
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine. 2.4L I4 MultiAir Engine w/ ESS. 2.4L I4 PZEV M-AIR ENGINE. 2.4L I4 PZEV M-AIR ENGINE W/ ESS. 3.6L V6 24V VVT Engine.
$8.91
$8.91
6
Recessed Torx Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M8x1.25x16.00. Oil Pump To Drive Gear. [M8x16]. Oil Pump Sprocket. Sprinter. Intake Support Bracket To Cylinder Head.
$7.42
$7.42
