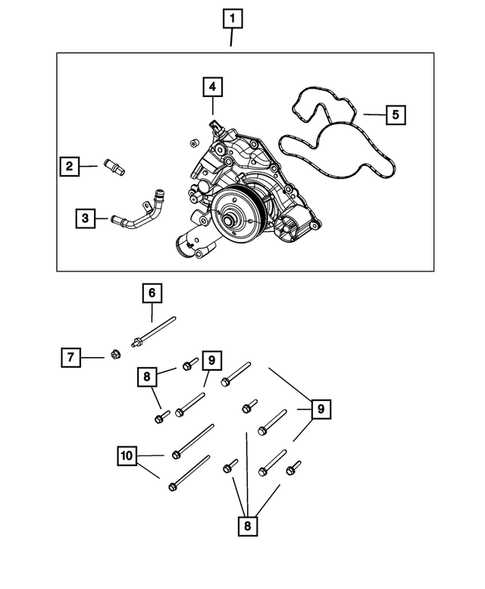

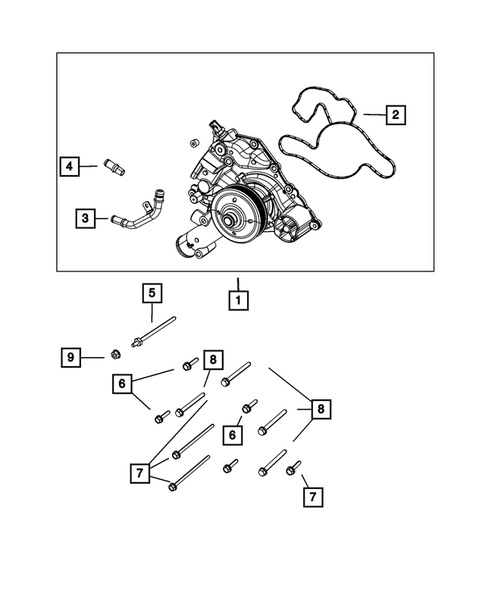

Water Pump and Related Parts for 2016 Ram 3500
No.
Part # / Description / Price
Price
1
Water Pump
Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: After 01/28/13 Includes gasket, nipple, tube, plug, and sensor. Includes gasket, nipple, tube, and sesnor. After 1/28/13 Includes gasket, nipple, tube, plug, and sensor.
2
Water Pump Gasket Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: NOT Included With Long Block Engine Install Kit.
MSRP $10.45
$7.81
MSRP $10.45
$7.81
3
Fluid Temperature Sensor Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS.
Description: Engine Oil. Engine Coolant Temerature. Coolant Temp. In water pump.
MSRP $67.90
$46.63
MSRP $67.90
$46.63
4
Water Inlet Tube Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Includes o ring. Included with Water Pump.
MSRP $77.25
$53.25
MSRP $77.25
$53.25
5
Nipple, Heater Hose Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Y-Style. Also Serviced With Item 1. Water Supply Rear Lower Intake. Also serviced wih Cover. Heater Hose To Lower Intake Manifold. Heater hose fitting. 0.375-18x2.00. Special .375-18x2.00 Heater Hose Supply. Also serviced with Cover.
MSRP $15.85
$11.88
MSRP $15.85
$11.88
6
Stud Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS.
Description: Water Pump To Bloc.
$7.15
$7.15
7
Hex Head Bolt And Washer Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS.
Description: M8x1.25x35.00. Oil Pan To Cylinder Block. Exhaust Hanger Bracket to Frame. Alternator Bracket To Valve Cover. Knock Sensor. Water Pump To Timing Case Cover. Bracket, SCR Inlet. Pump to Front Cover. Alternator Bracket To Front Timing Cover.
$4.76
$4.76
8
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS.
Description: M8x1.25x130.00. Right Side Cover To Cylinder Block. Timing Case Cover To Cylinder Block. Mega Cab. Water pump to cylinder block. Water Pump To Engine At Heater Tube Clip. Front Cover To Block Right Side Bushing [M8x1.25x130.0]. Quad Cab. Regular Cab.
$7.70
$7.70
9
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS.
$6.16
$6.16
10
Hex Flange Nut Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.
Not For Sale
Not For Sale
10
Hex Flange Nut Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS.
Not For Sale
Not For Sale
No.
Part # / Description / Price
Price
1
MSRP $70.00
$47.96
2

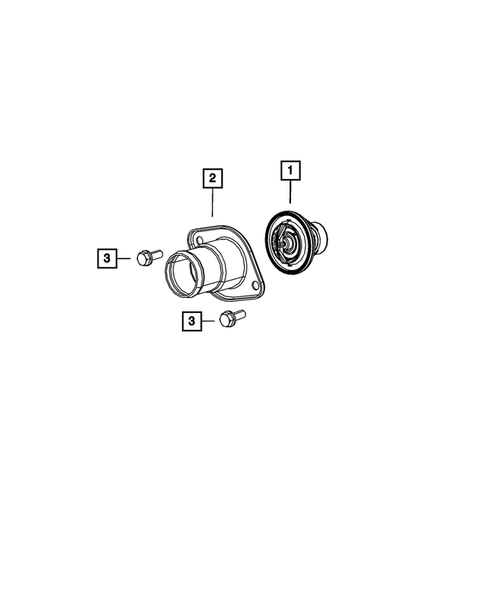

Thermostat Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: With Seal. After 12/03/12. After 01/14/13. 195 Degree. After 12/3/12.
MSRP $91.75
$61.05
MSRP $91.75
$61.05
3
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS.
Description: M8x1.25x30. Timing Case Cover Support Bracket To Cylinder Block. Intermediate Shaft to Engine Bracket. Engine Mount Bracket To Engine. Thermostat housing to water pump. Intermediate Shaft Attaching. Line to Accumulator. Reservoir to Bracket.
MSRP $23.60
$17.69
MSRP $23.60
$17.69
No.
Part # / Description / Price
Price
7
Hex Head Bolt And Washer Mopar
Mopar Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE.
Description: M8x1.25x35.00. Oil Pan To Cylinder Block. Exhaust Hanger Bracket to Frame. Alternator Bracket To Valve Cover. Knock Sensor. Water Pump To Timing Case Cover. Bracket, SCR Inlet. Pump to Front Cover. Alternator Bracket To Front Timing Cover.
$4.76
$4.76
10
Hex Flange Nut Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L V8 HEAVY DUTY HEMI ENGINE.
Not For Sale
Not For Sale
10
Hex Flange Nut Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L V8 HEAVY DUTY HEMI ENGINE. All Diesels Engines. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.
Not For Sale
Not For Sale
No.
Part # / Description / Price
Price
7
Not For Sale
7
Hex Flange Nut Mopar
Mopar Notes: Engines: 6.4L V8 Heavy Duty HEMI MDS Engine. All Diesels Engines. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.
Not For Sale
Not For Sale
8
Hex Head Bolt And Washer Mopar
Mopar Notes: Engines: 6.4L V8 Heavy Duty HEMI MDS Engine.
Description: M8x1.25x35.00. Oil Pan To Cylinder Block. Exhaust Hanger Bracket to Frame. Alternator Bracket To Valve Cover. Knock Sensor. Water Pump To Timing Case Cover. Bracket, SCR Inlet. Pump to Front Cover. Alternator Bracket To Front Timing Cover.
$4.76
$4.76
No.
Part # / Description / Price
Price
9
Hex Flange Nut Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS.
Not For Sale
Not For Sale
9
Hex Flange Nut Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine. 6.4L HEAVY DUTY V8 HEMI WITH MDS. Transmissions: 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions.
Not For Sale
Not For Sale
