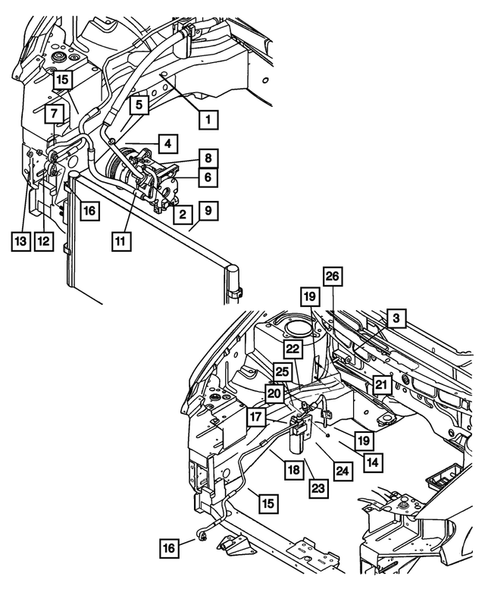

Air Conditioner and Heater Plumbing for 2004 Chrysler Town & Country
No.
Part # / Description / Price
Price
N/A
Expansion Valve O Ring
Mopar
Mopar Description: 3/8. 3/4 inch, Red. Evaporator Side 10mm. 1/2 Evaporator to H-Valve. 1/2 Expansion Valve to Evaporator. Up to 02/29/12. Liquid. Valve to Evaperator. 10.25MM ID.
MSRP $12.70
$9.31
MSRP $12.70
$9.31
N/A
Radiator Support, Left Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Condenser Mounting. With Lower Isolators.
N/A
$6.16
N/A
Expansion Valve O Ring Mopar
Mopar Description: [15.5mm]. [15mm]. 15.51mm ID 2.63mm Thick. 15.51mm ID 2.63 thick. 3/4 Evaporator to H-Valve. 3/4 Expansion Valve to Evaporator. Suction. Valve to Evaperator. 15.54MM ID.
N/A
Radiator Support, Right Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Condenser Mounting. With Lower Isolators.
1
A/C Suction Line Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: A/C SUCTION
1
A/C Suction Line Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [haa,had].
2
A/C Line Gasket & O Ring Kit Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: At Compressor. To Compressor.
MSRP $35.25
$25.35
MSRP $35.25
$25.35
3
A/C Line O Ring Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Suction Line to Expansion Valve. Suction Line to H-Valve. 5/8 Burgandy. Condenser End. Accumulator End. At Accumulator. 5/8 inch - Red. Suction Line to Compressor.
MSRP $10.10
$6.60
MSRP $10.10
$6.60
3
A/C Line O Ring Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Suction Line to Expansion Valve. Suction Line to H-Valve. 5/8 Burgandy. 5/8 inch.
4
Charging Valve Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: A/C LINE
MSRP $31.60
$22.75
MSRP $31.60
$22.75
5
A/C Check Valve Cap Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [haa,had]. Accumulator.
7
A/C Line Gasket & O Ring Kit Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Liquid Line to Drier & Condensor. Contains 5103428AA- Gasket and 5102355AA - O-Ring. Discharge. To Compressor and Condenser.
9
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Dual A/C. NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
9
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
15
A/C Liquid Line Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: To Condenser.
17
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Liquid Line. After 01-09-2002. After 12/11/2001.
19
A/C Line Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Liquid to Expansion Valve. With Rear A/C.
19
A/C Line Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Liquid to Expansion Valve. [HAA,HAD].
20
A/C Line O Ring Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Liquid Line to Drier. Expansion Valve. 1/2 inch - Red. Discharge Line to Condenser. Compressor or Condenser End. Compressor And Condenser End.
MSRP $9.45
$7.00
MSRP $9.45
$7.00
21
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: To Expansion Valve. To Drier. Up to 12/11/2001. 1/2 inch.
MSRP $9.45
$7.00
MSRP $9.45
$7.00
22
A/C Pressure Transducer Package Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Discharge Line.
23
Receiver Drier Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [haa,had].
25
MSRP $47.30
$32.43
26
Expansion Valve Kit Mopar
Mopar Description: Includes H-Valve to Evaporator O-Rings. Includes: Valve Mounting Screws, and Valve to Evaperator O-Rings. After 12/03/2003.

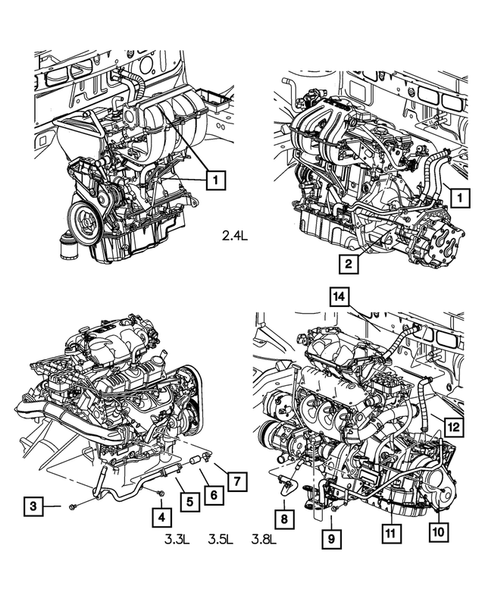

No.
Part # / Description / Price
Price
N/A
2
Hex Head Bolt And Washer Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
$7.42
$7.42
3
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: M6x1x16. Throttle Control Bracket. Aluminum Plenum. Filler Tube to Transmission. Cable Bracket to Throttle Body. Throttle Cable Bracket Attach. Bracket Mounting. Throttle Cable to Bellcrank.
$8.40
$8.40
4
Hex Flange Head Screw Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: M14x2.00x80.00. Wiring Bracket to Engine Crossover to Trans. Ground Strap attaching at Head. Crossmember Attaching. RF T/O to Cylinder Head Right and Left. Ground To Block. Engine Ground Left Head.
$8.26
$8.26
5
Heater Return Hose Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: With Tube, with Oil Cooler.
7
Hose Clamp Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Oil Drain Hose To Oil Drain Tube. [25mm].
MSRP $8.60
$6.31
MSRP $8.60
$6.31
8
Oil Cooler Outlet Hose Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: With Oil Cooler.
9
$6.16
10
Hex Head Screw And Washer, Engine Bracket To Block Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: M10x1.50x25.00. Bracket To Cylinder Block. Bracket To Frame. M10x1.5x25. Engine Mount Bracket To Engine Block. Wiring Bracket Engine Crossover to trans. Mounting Bracket to Block.
11
Heater Return Hose Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: With Tube. [haa, had].
No.
Part # / Description / Price
Price
N/A
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: 3/4. 3/8`. 5/8`.
MSRP $12.50
$9.19
MSRP $12.50
$9.19
N/A
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: To Expansion Valve. To Drier. Up to 12/11/2001. 1/2 inch.
MSRP $9.45
$7.00
MSRP $9.45
$7.00
1
Self Taping Flange Head Bolt And Washer Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: M8x1.25x40.00. Liquid Line to Rear Evaporator Core Mounting.
1
Self Taping Flange Head Bolt And Washer Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: M8x1.25x40.00. Liquid Line to Rear Evaporator Core Mounting.
4
A/C Suction Line Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: 3/4` Line.
8
Heater Hose Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Rear.
MSRP $56.90
$39.10
MSRP $56.90
$39.10
9
10
11
12
Supply & Return W/Auxiliary Heater Tube & Hose Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [-cyc].
13
Supply & Return W/Auxiliary Heater Tube & Hose Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
No.
Part # / Description / Price
Price
N/A
Expansion Valve O Ring Mopar
Mopar Description: 3/8. 3/4 inch, Red. Evaporator Side 10mm. 1/2 Evaporator to H-Valve. 1/2 Expansion Valve to Evaporator. Up to 02/29/12. Liquid. Valve to Evaperator. 10.25MM ID.
MSRP $12.70
$9.31
MSRP $12.70
$9.31
N/A
Expansion Valve O Ring Mopar
Mopar Description: [15.5mm]. [15mm]. 15.51mm ID 2.63mm Thick. 15.51mm ID 2.63 thick. 3/4 Evaporator to H-Valve. 3/4 Expansion Valve to Evaporator. Suction. Valve to Evaperator. 15.54MM ID.
23
Expansion Valve Kit Mopar
Mopar Description: Includes H-Valve to Evaporator O-Rings. Includes: Valve Mounting Screws, and Valve to Evaperator O-Rings. After 12/03/2003.

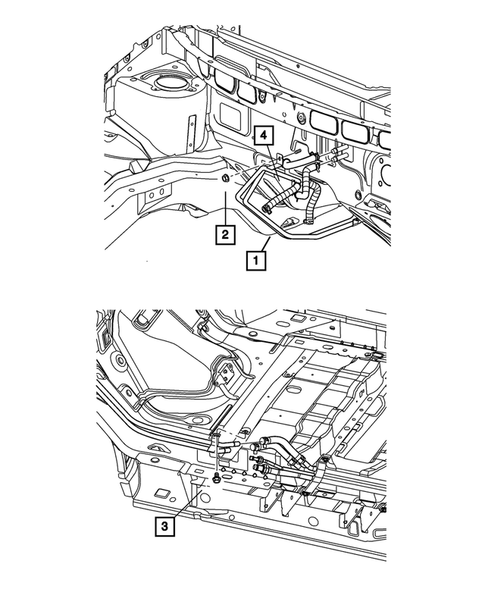

No.
Part # / Description / Price
Price
1
Supply & Return W/Auxiliary Heater Tube & Hose Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [-cyc].
2
Hex Nut And Washer Mopar
Mopar Description: M6x1.0. Flag Attaching. Instrument Panel Stack to Floor Brace. Left Heat Shield to Exhaust Manifold. Console to Floor. Floor Bracket to Floor.
MSRP $10.65
$7.94
MSRP $10.65
$7.94
3
Hex Head Screw Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
$7.04
$7.04
4
Supply & Return W/Auxiliary Heater Tube & Hose Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
